TRANSFORMER OIL TANK MAGNETIC SHIELDING

2023-07-31

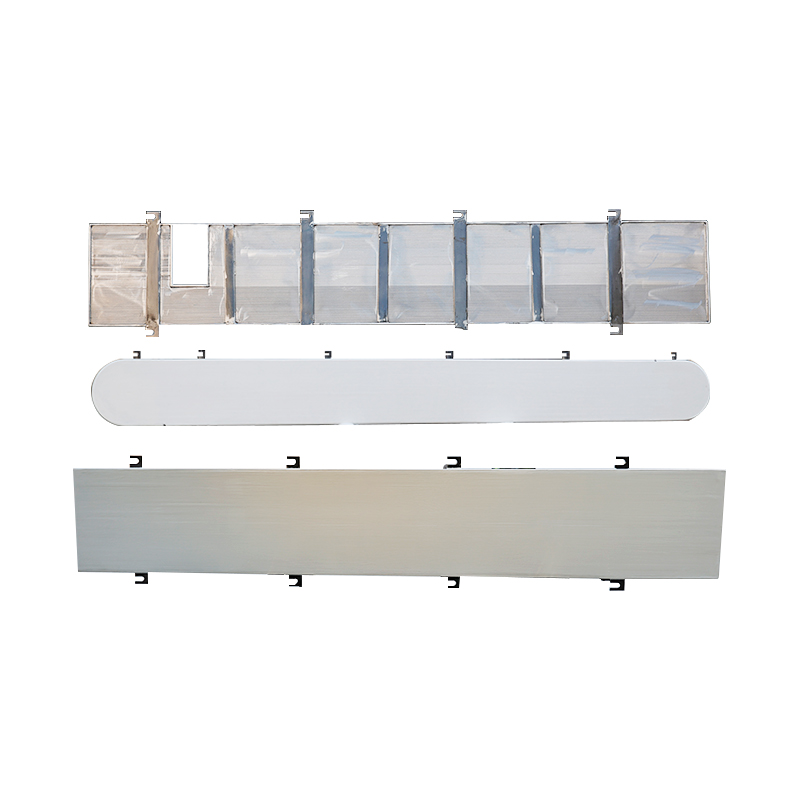

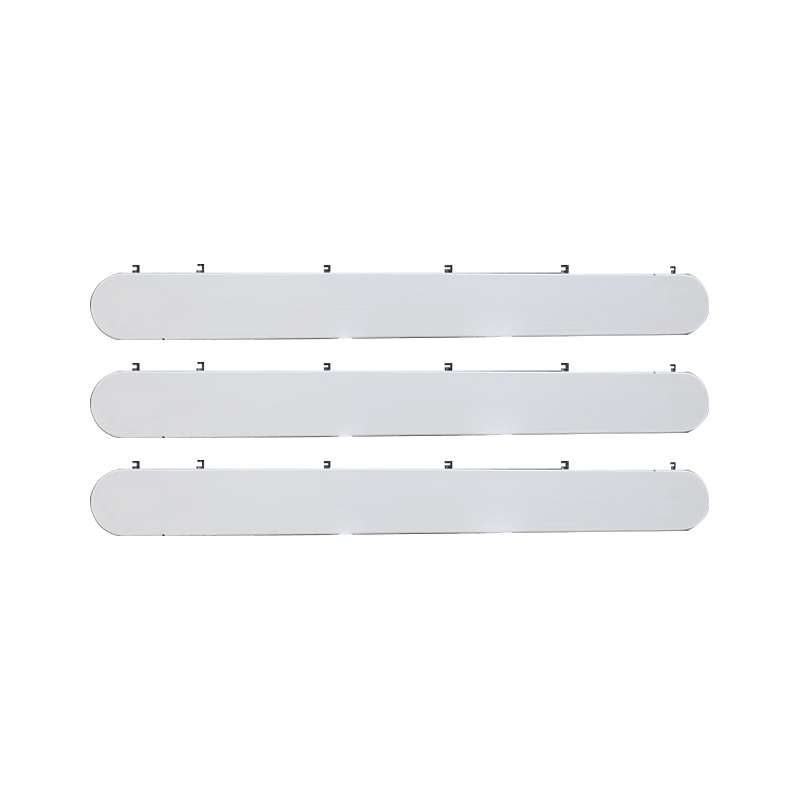

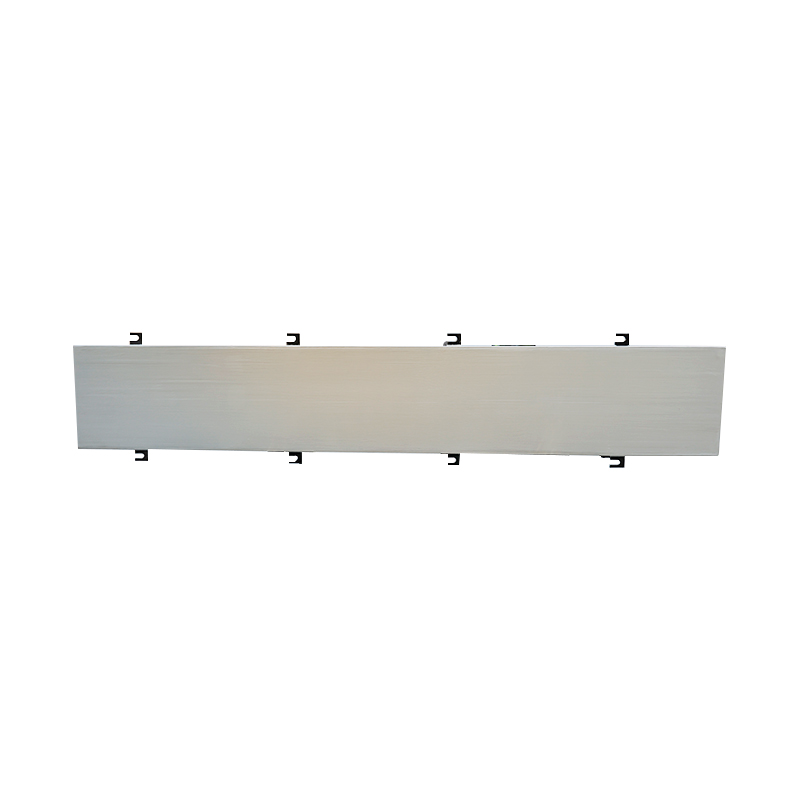

The basic structure of the magnetic shield of the fuel tank. A set of shielding plates is made of silicon steel sheets and hangs as a lining on the inner wall of the tank. This is because the permeability of silicon steel plates is greater than the magnetic permeability of ordinary steel plates used for fuel tanks, so that the leakage flux flows along the silicon steel plate without entering the box wall, thereby reducing stray losses. Of course, silicon steel plates will also cause iron loss to a certain extent, but the unit loss of silicon steel plates is small. Therefore, the loss in the magnetic shield is less than the loss in the box wall. This method is often referred to as magnetic shielding. Magnetic shielding is typically used only for high-capacity, high-voltage transformers, which are typically around 10mm-40mm thick. The leakage flux of the high winding placed close to the magnetic field strength of the magnetic shield, the height exceeds the height of the winding, because the leakage flux enters the tank wall, bypassing the magnetic shield, the influence of the magnetic shield is reduced. Local overheating occurs in the magnetic shield. Tests have shown that magnetic shielding can be reduced by about 30%.

In order to ensure reliable operation of energy-efficient transformers, at present, medium and large transformers (such as power transformers and reactors of 110 kV or more) usually use non-magnetic or low-magnetic steel structural components, welded to the inner wall of the tank, and shielded with electromagnetic to reduce stray losses. It is the practice of domestic and foreign transformer manufacturers to usually shield certain parts of the box wall electrically or magnetically. Shielding effectively reduces additional losses in transformers by 20%-30%, which plays a very important role in saving energy and increasing product life.
